Sony SSCDC374 Fixed Color Camera
Location: Shortcut to Homepage /Bullet, Long & Box Cams/Box Cameras/Sony SSCDC374 Fixed Color Camera
Sony SSCDC374 Fixed Color Camera
Quantity: Add to Basket

Product Information

Sony's SSC-DC374 analog CCTV camera incorporates the latest Sony CCD and Digital Signal Processor (DSP) technologies to provide high quality, color images at an incredibly affordable price. The SSC-DC374 offers remarkable sensitivity with a S/N ratio of more than 50dB and is equipped with AC 24V power capability. In addition, set up is a breeze with tripod screw holes already located on the top and bottom of the camera. Offering excellent performance, dependability and aesthetically pleasing and compact design, the SSC-DC374 is perfectly suited for commercial and fashionable facilities such as retail stores, shopping malls, stadiums, arenas, banks and office buildings!

Highlights:

  • High quality and high sensitivity - 1/3 type IT DSP CCD with Super HAD™ technology
  • High resolution - 480 TV Lines
  • Minimum Illumination of 0.8 Lux @ F1.2 (50 IRE)
  • On/Off Backlight Switchable
  • Turbo AGC (up to 24 dB) for clear, distinguishable images
  • Accepts DC Servo lenses

Analog Video Output Specs Detail:
S/N Ratio More than 50 dB
Signal System NTSC



Camera Specifications Detail:
Auto Iris Type DC servo
Camera Type Fixed Camera (Color)
Day Night No
Effective Pixels 768 x 494 pixels
Electronic Shutter 1/60 to 1/100000 s
Horizontal Resolution 480 TVL
IP/Analog Analog
Image Device 1/3 type Super HAD CCD
Lens Mount CS-mount
Minimum Illumination 0.8 lx at F1.2
(50 IRE
AGC ON
Turbo mode)
White Balance Mode ATW
Wide-D No



General Specs Detail:
Dimensions (W x H x D) 2 3/8 x 2 1/4 x 4 3/4 inches
(60 x 54 x 120 mm)
Operating Temperature -10°C to 50°C (14°F to 122°F)
Power Consumption 3.6 W
Power Requirements AC 24V ±10%
60 Hz
Storage Temperature -40°C to 60°C (-40°F to 140°F)
Weight 13 oz (355 g )



Interface Specifications Detail:
Analog Video Output BNC
1.0 Vp-p
75 Ω
Sync negative

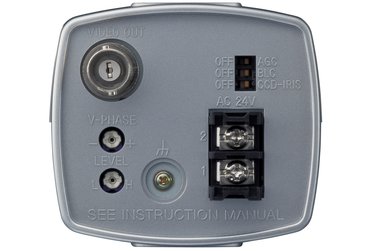

Sony SSCDC374  back

Brochure Download now

Be the first to review this product!

Price: $234.00 $193.53
Brand/Manufacturer: SONY


Product Options:
POWER SUPPLY

Product Code: SSCDC374
Quantity: Add to Basket
