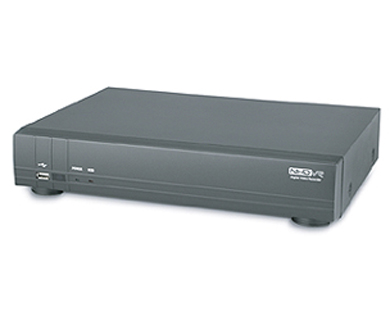

SDVR4: Entry Level 4CH DVR

Location:

/DVRs & NVRs/4-6 CH Digital Video Recorders (DVR)/Stand Alone DVR's/SDVR4: Entry Level 4CH DVR

Quantity: Add to Basket

Product Information

Entry Level, 4Ch Standalone DVR, Triplex, 120/120fps@CIF, Network, VGA, 250GB HDD

JUMP TO SPECS FEATURES FAQ'S

- Entry Level
- 4 CH Video in
- Triplex Operation
- MPEG-4 Video Compression
- USB Backup
- Recording Speed: 120 FPS Maximum @ CIF
- Easy and Simple Interface.
- VGA, BNC Analogue Output, Spot Output
- Free Dynamic DNS
- Network Connectivity by Dynamic IP (DHCP) / Static IP
- Audio and Alarm Inputs / Outputs
- Max. 750GB Hard Drive - 750GB HDD X1EA.

FEATURES

SPECS

ITEM			SDVR4	SDVR8	SDVR16
Video	Input	Composite	4CH,Composite 1.0Vp-p, 750hm	8CH,Composite 1.0Vp-p, 750hm	16CH,Composite 1.0Vp-p, 750hm
		Signal Format	NTSC/PAL(Auto Detection)
		Video Loss	Yes
	Output	Main Monitor	1CH BNC, 1CH VGA: Selectable)
		Output Level	Composite 1.0Vp-p+_0.2,75 0hm
		Signal Format	NTSC/PAL&VGA
Alarm	Sensor Input		4(NC/NO Selectable)
	Alarm Output		1
Recording	Compression		MPEG-4
	Muiti-Operation		Tricplex(Playback/Record/Network)
	Frame Rate	Full-D1	704x480(NTSC) / 704x576(PAL)
		Half-D1	-	704 x 240(NTSC) / 704 x 288(PAL	704 x 240(NTSC) / 704 x 288(PAL
		CIF	352x240(NTSC)/352x288(PAL)
	Recording quality grade		Low/Standard/High/Super/Ultra
	Recording Mode		Continuous/Schedule/Motion/Sensor/Manual
	Motion Detection		Motion Detection Setup by Grid
	Pre & Post Recording		Yes
Display	Frame Rate		NTSC: 30Fps /PAL: 25 Fps
Playback	Multi-Decording		1 & 4 split screen	1 & 4, 8 split screen	1 & 4, 8,16split screen
	Search Mode		Event, Time Line, Archive, Log
Storage	Internal HDD	interface Type	EIDE / ATA 133
		Max. Capacity of 1 HDD	750GB
		Max. HDD Number	1
	File System		NaFS-Designed to prevent dataloss or corruption in the event of apower failure
	Backup	USB Flash Drive	JPEG & AVI / Exclusive Video Format
		Network	Video & Still Image
User I/F	Menu Display		Text UI
	input Method		Remote Controller
Network	Dynamic IP & DDNS		Yes
	Network Interface		10/100 Base-T Ethernet (RJ-45)
	Functions		Live, Search, Backup, PTZ Camera Control
	Network Access Type		Network Client Software, Web Viewer, and Multi-site monitoring Software.
Additional Function	DLS(Day Light Saving)		Yes
	S/W Upgrade		USB Flash drive
General	Power Source		DC +12V adapter
	Unit Weight(Gross Weight)		1.5Kgs(3Kgs) /3.3Lbs(6.6Lbs)
	Unit Dimension(W x H x D)		340 x 262 x 63 mm /13.4 x 10.3 x2.5inches
