Product Information

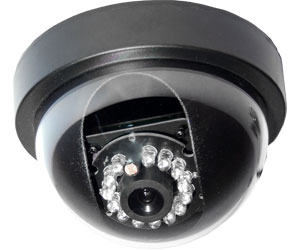

Dome Camera, LTS, 1/3" Sony Super HAD CCD, 550 TV Lines, 6mm Lens

14 IR Max range 49 feet, 0 LUX, NTSC, DC 12V 500mA.

Image Sensor		1/3" Sony Super HAD CCD
Signal System		NTSC
Effective Pixels		512(H) x 494(V)
Horizontal Resolution		550 TV Lines
Infrared LED		14 pcs
Minimum Illumination		0LUX/ F1.2
Back Light Compensation		Auto
Gain Control		Auto
View Angle		45°
Electronic Shuttter		1/50 (1/60) - 1/100,000 sec
S/N Ratio		>52dB
Video Output		1.0 Vp-p, 75 Ohms
Supply Voltage		DC 12V (+/- 10%)
Power Consumption		500mA
Operating Temperature		4°F to 122° F
Lens		6mm Fixed Lens
Dimension		Ø 4.65" x 2.9"
Weight

Image Sensor		1/3" Sony Super HAD CCD
Signal System		NTSC
Effective Pixels		512(H) x 494(V)
Horizontal Resolution		550 TV Lines
Infrared LED		14 pcs
Minimum Illumination		0LUX/ F1.2
Back Light Compensation		Auto
Gain Control		Auto
View Angle		45°
Electronic Shuttter		1/50 (1/60) - 1/100,000 sec
S/N Ratio		>52dB
Video Output		1.0 Vp-p, 75 Ohms
Supply Voltage		DC 12V (+/- 10%)
Power Consumption		500mA
Operating Temperature		4°F to 122° F
Lens		6mm Fixed Lens
Dimension		Ø 4.65" x 2.9"
Weight

Be the first to review this product!

Price: $99.21 $79.99
Brand/Manufacturer: Lasertech
