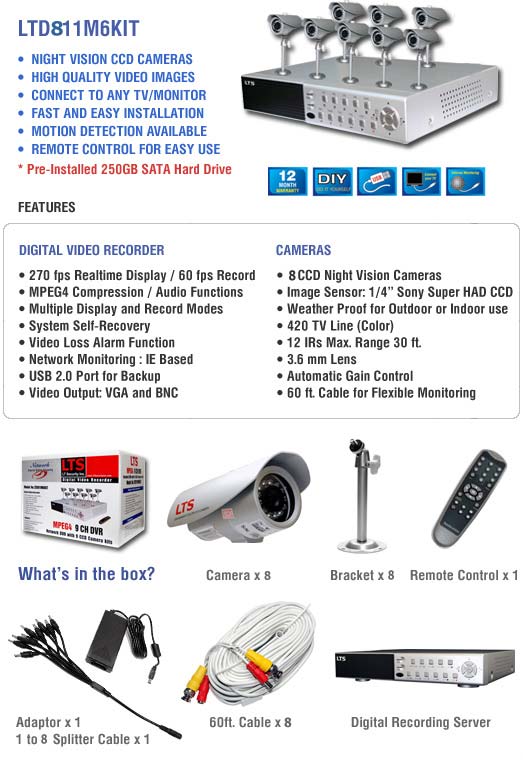

Complete 8CH Remote View Mobile View Security Camera Package

Location:

/Complete Systems/Value Added Camera Systems/Complete 8CH Remote View Mobile View Security Camera Package

Quantity: Add to Basket

Product Information

SPECIFICATION

DIGITAL VIDEO RECORDER
* Pre-Installed 250GB SATA Hard Drive
Compression		MPEG4
Video I/O		BNC 8-Channel Inputs/ 1-Channel Output
Audio I/O		RCA 1-Channel Input/ 1-Channel Output
Video Output		1 VGA Output, 1 BNC
Display Resolution		NTSC: 720 x 480; PAL: 720 x 576
Display Frame Rate		NTSC: 270fps; PAL: 225fps
Record Resolution		NTSC: 720 x 240; PAL: 720 x 288
Record Frame Rate		NTSC: 60fps; PAL: 50fps
HDD Interface		1 SATA 250GB HDD Pre-installed, Max. up to 500GB
Record Modes		Continuous, Motion Detection, Sensor Triggered, Time Schedule
Record Picture Quality		Low, Normal, High, Highest
Sensor & Alarm		8-Channel Inputs/ 1-Channel Outputs
PTZ Control		RS-485
Network Interface		RJ45, TCP/IP
Network Remote Users		Up to 5 Users Simultaneously
USB Interface		USB 2.0 (For PC backup only)
Remote Control		IR Remote Control
Power Supply		DC 12V (adapter included)
CAMERAS
Image Sensor		1/4" Sony Super HAD CCD
Minimum Illuminance		0 Lux with 12 x IR LEDs
Signal System		NTSC
Lens		3.6mm
Power Supply		DC12V
Resolution		420TVL
Dimensions		2.3" x 4.1"
Operation Temperature		14°F ~ 122°F
Operation Humidity		10%~ 80%
Video Output		1.0 Vp-p, 75 Ohm
Electronic Shutter		1/50(1/60)- 1/100,000 second
S/N Ratio		>= 48db
PACKAGING
Package Contents		LTD811M6
		IR cameras X 8 with 3.6mm
		User Manual
		Software CD
		Camera Cables x 9 (60 ft)
		USB 2.0 Cable
		Ethernet Cable
		BNC to RCA Cable
		Power Supply for DVR
		Power Supply for Cameras
		8-way Splitter Cable
		Cameras Stands x 8
		250GB SATA Hard Drive Pre- Installed
		Remote Control
Dimensions		17.75" x 11.5" x 12.25"
Weight		27.55 lbs
