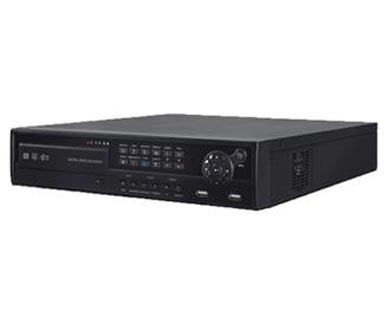

CNB TECH Pentaplex 16 Channel Standalone DVR (480fps@CIF)

Location:

/DVRs & NVRs/16 CH Digital Video Recorders (DVR)/Stand Alone DVR's/CNB TECH Pentaplex 16 Channel Standalone DVR (480fps@CIF)

Quantity: Add to Basket

Product Information

Professional Level
- Pentaplex 16 Channel Standalone DVR (480fps@CIF)
- MPEG4 ASP Records and Plays in High Definition Video
- Rec. Real-time on 16 cameras : 480fps(NTSC) / 400fps(PAL)
- Simultaneous recording & transmission : dual codec function
- Static IP, DHCP, DDNS Support
- Archiving (JPEG, EXE Format)
- Software Upgrade via Network, USB Port, CD/DVD-RW
- Keyboard Controller, Various PTZ Protocol Support
- Simultaneous BNC output & VGA
- Support POS / ATM
- Internal RAID 1 Function (Optional)
- USB Mouse Support

MODEL	RE8	RE16
Compression	Advanced MPEG4 ASP
Signal Format	NTSC or PAL (Auto Selected)
Video Input	Composite 8 BNC Input	Composite 16 BNC Input
Video Output	Composite : 1 BNC (1Vp-p, 75 Ohm)
Loop Output	8 BNC Looping Outputs	16 BNC Looping Outputs
Spot Output	1 BNC
VGA Output	1 VGA
Display Resolution	704 x 480, 704 x 240, 352 x 240 (NTSC) / 704 x 576, 704 x 288, 352 x 288 (PAL)
Recording Resolution	704 x 480, 704 x 240, 352 x 240 (NTSC) / 704 x 576, 704 x 288, 352 x 288 (PAL)
Live Monitoring Frame Rate	352 x 240: 240FPS (NTSC) / 352 x 288 : 200	352 x 240: 480FPS (NTSC) / 352 x 288 : 400FPS (PAL)
Recording Frame Rate	352 x 240: 240FPS (NTSC) / 352 x 288 : 200	352 x 240: 480FPS (NTSC) / 352 x 288 : 400FPS (PAL)
Video Stream	Dual	On/Off (240fps recording frame @ CIF w/ Dual on)
Audio Input	8 Inputs (RCA Jack)	16 Inputs (RCA Jack)
Audio Output	1 Output (RCA Jack)
Ethernet	10 / 100Mbps Ethernet (RJ-45)
PTZ Control	RS-485/422 Serial Port 1 (Terminal Block)
ATM / POS	RS-232 Serial Port 1 (D-Sub Connector)
Alarm Input	8 (TTL) Programmable as NC/NO	16 (TTL) Programmable as NC/NO
Alarm Output	8 (TTL) Programmable as NC/NO	16 (TTL) Programmable as NC/NO
USB Port	4 x USB2.0 ( 2 x Front Panel, 2 x Rear Panel)
Recording Qualities	Super / High / Standard
Recording Modes	Schedule / Alarm / Motion / Emergency
Pre-alarm Recording	up to 3 Hours / User Programmable
Motion Detection	Yes (22 X 15)
Playback Speed	X1, X2, X4, X8, X16, X32, X64, Extreme
Archive File Format	EXE(Video) / JPEG(Still Image)
NTP Server	Yes
GMT Time Zone	Yes
Auto DST	Yes
Multi Language	English / Danish / Chinese / Japanese / Korean / Italian / Polish / French / Portuguese
Operation System	Embedded Linux
OS Firmware	Linux OS in Flash Memory
Emergency Recording Key	Yes
Primary Storage	SATA Hard Disk Drive (up to 2 + 1)
Clip Copy Storage	Built-in Internal CD-RW or DVD-RW Driver, USB HDD, Memory Stick
Dimension (W x H x D)	350mm x 65mm x 380mm / 13.78inch x 2.56inch x 14.96inch
Operating Temperature	5C~40/ 41F~104F
Operating Humidity	0% ~ 90%
Power Adapter	Free Voltage 12VDC, 5A
Power Consumption	Max 35W
Agency Approval	FCC / CE / UL

Be the first to review this product!

Price: $1313.60 $1116.56
Brand/Manufacturer: CNB Technology

Product Options:

ADD HARD DRIVE

Product Code: RE16-500

Quantity: Add to Basket
