8 CH COMBO DVR LCD

Location:

Quantity: Add to Basket

Product Information

MAIN FEATURES AT A GLANCE

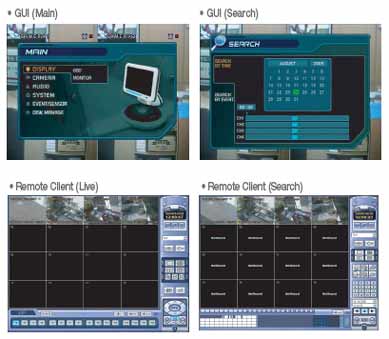

COMBO 8CH DVR GUI

Performance		TRIPLEX
Display Speed (NTSC)		240 fps
Recording Speed	Max. CIF (360*240)	120 / 100 fps
	Max. CIF (704*240)	60 /50 fps
	Max. CIF (704*480)	30 / 25 fps
Video In	Channel	8 ch(BNC) or DIN
Video Out	VGA	1280 x 1024
Video Out	Spot out / monitor out	1 ch(BNC)
Audio	Input / output	4 Line in (RCA) / 1 Line out (RCA)
Alarm	DI / DO	8 input / 1 out
Control Device		keypad / Remote Controller / Control Keyboard / USB mouse

Screen	Division	1, 4, 6, 8, 9 / Graphic User Interface
Screen	Interface	Graphic User Interface
Video	Format	NTSC Auto detection
	Codec	Modified MPEG-4
	Image Quality	Highest/ High/ Standard/ Low
	Recording type	Continuous/ Motion/ Alarm
Multi-Language Support		English, Spanish, Portuguese, Russian, Polish, Italian, Korean, Japanese, French, German
System Reliability	Functions	Water Mark, Watch Dog, Shutdown detection, Auto Recovery, Factory Default
System Reliability	firmware Update	by USB or Network
Storage	Interface type	PATA
	HDD /Capacity	Up to 4 HDD(3 HDD+1 odd) / Not limited
	Recording HDD mode	Write once / Overwriting
Power	Source	120 to 240 VAC
Connectors	USB port	Approx. 60 watt

Motion	Area	Adjustable(16x16 GRID), 10 steps
Event	Source	Sensor in, Motion detection, Video loss, HDD S.M.A.R.T
	Action	Recording, Digital Out, e-Mail notification, Log file, Send mess to Remote, Buzz Out, Pop Up Widow
	Pre/Post Alarm	Yes (Up to 5 sec / Post Alarm : 3 min)
PTZ	Signal input	RS 485 ( Local & Remote Control)
Back Up	file format	AVI
Back Up	Device	USB Device(USB Memory Stick, USB HDD, USB DVD and USB CD/RW) Network
Network	Protocol	TCP/IP(Dynamic IP Support), DHCP, DDNS
	Physical/Mac Layer	RJ45, Ethernet
	Max no. of connections	4 User
	other fucntions	wo-Way Audio, Bandwidth Throtting
	Browser	Remote S/W provided, Web Browser (Internet Explorer)
Other functions		Daylight Saving Time,
Size (HxWxD)	Dimention & Weight	600 x 330 x 580 / 10Kg
