Product Information

4 Channels H.264 Triplex DVR, Built-in 7" Retractable LCD Monitor, 120 FPS Display/ 120 FPS Record, 720 x480 High Resolution/ Real Time Display, Network, Motion/Sensor Detection,

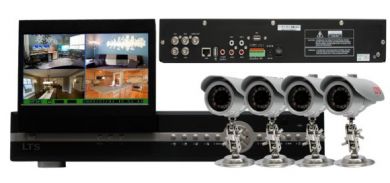

LTS 4-Channel Multiplex H.264 DVR System Kit is a Professional Network Digital Surveillance System, build-in 7" LCD monitor, pre-installed 250GB SATA hard drive, with 4 x 1/4" Sony super HAD CCD cameras

Features

• Build-in 7" Retractable LCD Monitor
• Pre-Installed 250GB SATA Hard Drive
• Full set Installation kit
• 4-Piece Sony Super HAD CCD IR Cameras

DVR Specifications

• Compression: H.264
• Video I/O: BNC 4-Channel Inputs/ 1-Channel Outputs
• Audio I/O: RCA 4-Channel Inputs/ 1-Channel Outputs
• Video Output: 1 BNC
• Display Resolution: NTSC: 720 x 480; PAL: 720 x 576
• Display Frame Rate: NTSC: 120fps; PAL: 100fps
• Record Resolution: NTSC: 720 x 240/ 360 x 240 ; PAL: 720 x 288/ 360 x 288
• Record Frame Rate: NTSC: 120fps; PAL: 100fps
• HDD Interface: 1 SATA 250GB HDD Pre-Installed, Max. up to 500GB
• Record Modes: Continuous, Motion Detection, Sensor Triggered, Time Schedule
• Record Picture Quality: Low, Normal, High, Highest
• Sensor & Alarm: 4-Channel Inputs / 1-Channel Output
• PTZ Control: RS-485
• Network Interface: RJ45, TCP/IP
• USB Interface: USB 2.0
• Display Device: 7" Retractable LCD Monitor
• Backup Device: USB 2.0 Thumb Drive (Individual Channle AVI Format Supported)
• Remote Control: IR Remote Control
• Power Supply: DC 12V (Adapter Included)

Camera Specifications

• Image Sensor: 1/4" Sony Super HAD CCD
• Minimum Illuminance : 0 LUX with 12 x IR LEDs
• Signal System: NTSC
• Lens: 2 x 3.6mm and 2 x 6.0mm
• Power Supply: DC12V
• Resolution: 420TVL
• Dimensions: 2.3" x 4.1"
• Operation Temperature: 14°F~ 122°F
• Operation Humidity: 10%~ 80%
• Video Output: 1.0 Vp-p, 75 Ohms
• Electronic Shutter: 1/50(1/60) - 1/100,000 second
• S/N Ratio: >= 48db

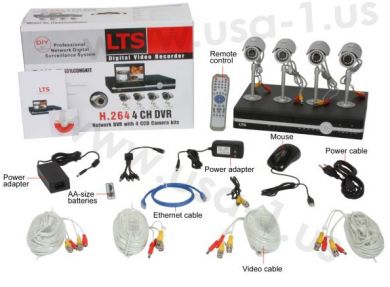

Kit Includes

• 1 x Digital Video Recorder
• 1 x Remote Control
• 1 x User Manual
• 2 x Switch Power Adapter
• 1 x USB Mouse
• 1 x Network Cable
• 1 x BNC to RCA Cable
• 2 x Super HAD CCD IR Camera with 3.6mm Lens
• 2 x Super HAD CCD IR Camera with 6mm Lens
• 4 x 60FT cables
• 1 x ( 1 to 4 Splitter Cable )
• 1 x 250G SATA Hard Disk

Be the first to review this product!

Price: $899.99 $699.99
Brand/Manufacturer: Lasertech
